KIRISUN PT6800
Trunked FM Professional Transceiver点击见大图

  • Powerful Trunking Functions
    Conform to MPT1327 & MPT1343.
    One-button-switch between trunking mode and conventional mode.

  • Excellent Battery Performance
    High-capacity battery for longer standby time and talking time.
    Lithium battery option.

  • Durable & Rugged
    Design according to MIL-STD-810C/D/E standard assures waterproof, dustproof and high/low temperature resistance.

  • Human Engineering Design
    Compact and streamline machine body is comfortable for your holding.

  • Human-Based Operations
    PC programmable, emergency button, backlight keypad, large screen and large keys.

  • 250 Contacts Memory
    The biggest contact memory among present trunking transceivers improves the conversation efficiency between multi-systems and multi-networks.

  • Customized Menu & ID Enquiry
    The ID number and system parameters can be checked according to enquiry authorization, which can be set as you like.

PT6800 SPECIFICATION

  General

  General

PT-6800 ( 2

PT-6800 ( 4

  Frequency

350 ~ 390 MHz

420 ~ 470 MHz

  Control channels

64

  Conventional channels

32

  Channel spacing

25 kHz / 12.5 kHz

  Operating temperature

-30 C ~ +60 C

  Antenna impedance

50 ohm

  Microphone impedance

2k ohm

  Modulation type

16K0F3E, 15K0F2D (W) /11K0F3E, 10K5F2D (N)

  Frequency stability

+/-2.5ppm

  Battery ( Standard )

Model : KB-36A, Ni-MH1500mAh, DC 7.2V +/-20%

  Case size(W * H * D)

56mm * 120 mm * 35 mm

  Weight

214 g ( Body ) 413 g ( with battery and antenna )

  Receiver

  Sensitivity (12dB SINAD)

0.25uV (W ) / 0.28uV ( N)

  Operating band width

+/- 7KHz (W) / +/-3.5KHz (N)

  Adjacent channel selectivity

+/- 70 dB (W) / +/- 65dB (W)

  Intermodulation reject ratio

+/- 70 dB (W) / +/- 65dB (W)

  Spurious response reject ratio

+/- 70 dB

  AF output power

500mW (16з, distortion less 5%)

  Audio response

+2/-6 dB

  Transmitter

  RF power

4W (H )/ 1W (L)

  Spurious and harmonics

<= -70 dB

  FM noise ( 300~3000Hz )

-45 dB (W) / -40 dB (N)

  Audio distortion ( 300~3000Hz )

<= 3%

  Maximum frequency deviation

+/- 5kHz (W) / +/- 2.5kHz (N)

  Audio response

+/- 3dB

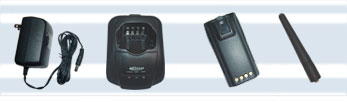

Standard Accessories


User's Manual download:
PT6800-07-21new logo.pdf
Software download:
(NONE)
