KIRISUN PT6200
Conventional FM Professional Transceiver
-
16 CHANNELS AND BUILT-IN CTCSS/DCS TONE  SIGNALING
-
2 PROGRAMMABLE FUNCTION KEYS ENABLE VARIOUS QUICK OPERATIONS
-
BUILT-IN OPTIONAL DTMF, 5-TONE, OR KDC1200 SIGNALING
-
PC PROGRAMMABLE
Frequency and various functions can be set by programming software.
-
TOT FUNCTION AVAILABLE
-
BUSY CHANNEL LOCKOUT
-
REMOTE KILLING
The base station can give remote killing order to the lost or stolen radio to prohibit its operating.
-
BUILT-IN VOX FUNCTION
-
EMERGENCY ALERT
ID number can be sent to the base station in urgent circumstances by pressing emergency button.
-
VOICE ANNUNCIATION OF CHANNEL NUMBER
While switching to another channel, you can hear the voice annunciation of the current channel number.
-
HIGH EFFICIENT WIRELESS CLONE
All stored data can be transferred to other radios of the same model without cable, providing quick and easy transfer of settings.
|
PT6200 SPECIFICATION
General |
Frequency Range |
136- 174 MHz |
400 -440MHz |
430 - 470 MHz |
470 - 512 MHz |
Channels |
16 |
Channel space |
25 kHz / 12.5 kHz |
Operating temperature |
-25C ~ +55C |
Antenna impedance |
50 ohm |
Microphone impedance |
2k ohm |
Modulation type |
16k0F3E(W)/ 8k50F3E(N) |
Frequency stability |
+/-3 ppm |
Battery ( Standard ) |
Ni-MH DC 7.2V /1500mAh |
Dimension(W*H*D) |
56mm*120mm*35mm |
Weight |
160(Body);332(With battery and antenna) |
Receiver |
Sensitivity (12dB SINAD) |
<=0.25uV |
Operating band width |
+/-7kHz ( W ) / +/-3.5kHz ( N ) |
Adjacent channel selectivity |
>= 70dB(W)/ >=60dB(N) |
Intermodulation reject ratio |
>= 65dB |
Spurious response reject ratio |
>= 70dB(W)/ >=60dB(N) |
AF output power |
500mW (Distortion less than 5%) |
Transmitter |
RF power |
5W/1W |
Spurious and harmonics |
<= -70 dB |
FM noise(300 ~ 3000Hz) |
<= -40dB(W)/ <=-35dB(N) |
Audio distortion(300 ~ 3000Hz) |
<= 5% |
Maximum frequency deviation |
+/-5kHz(W)/ +/-2.5kHz(N) |

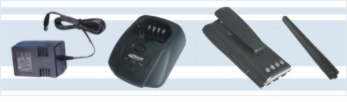

Standard Accessories
|
|
|
|
