KIRISUN PT446
Conventional FM Professional Transceiver点击见大图

  • 1 6 CHANNELS
    15 channels plus one scanning channel are selectable.

    CTCSS / DCS
    Built-in CTCSS / DCS Encoder/Decoder for repeater selective calling.

    TRANSMISSION PROHIBITED ON BUSY CHANNEL
    The function of prohibiting transmission on busy channel is present to avoid interfering other ongoing communication.

    AUTO POWER-SAVING
    Automatic power saving can be preset by programming software.

    TOT(time-out-timer) CONTROL
    Time-out-timer function can stop the transmitting automatically by presetting a time limit to avoid any damage caused by long-time continuous transmission.

    WIRE CLONE

    All the stored data can be transferred to another transceiver of the same by wire.

    PC PROGRAMMABLE

    Frequency and other functions can be preset by PC programming software.

    SET SQUELCH LEVEL THROUGH PROGRAMMING SOFTWARE
    Set squelch level through programming software ,so can avoid noise

PT446 SPECIFICATION

  General

  General

PT-446

  Frequency

(446.00625~446.09375) MHz

  Channels

16 ( 15+S )

  Channel space

12.5 kHz

  Temperature range

-30 ℃ ~ +60 ℃

  Antenna impedance

50 ?

  Microphone impedance

2K

  Frequency stability

± 2.5ppm

  Battery ( Standard )

Model : KB-22B , Ni-MH
DC 7.2V ± 20% 1100mAH
Battery life : Over 12 hrs ( 5-5-90 duty )

  Case size(W X H X D)

55 mm X 115 mm X 32 mm

  Weight

130 g ( Body ) , 240 g ( with battery and antenna )

  Receiver

  Sensitivity (12dB SINAD)

0.25 μ V

  Operating band width

± 3.5KHz

  Adjacent channel selectivity

≥ 60dB

  Intermodulation reject ratio

≥ 65dB

  Spurious response reject

≥ 70dB

  AF output power

500mW (8 ? Load , distortion less 5%)

  Transmitter

  RF power

0.5W

  Modulation type

8K0F3E

  Spurious and harmonics

≤ - 70 dB

  FM noise ( 300~3000Hz )

≤ - 40 dB

  Audio distortion ( 300~3000Hz )

≤ - 5%

  Maximum frequency deviation

± 2.5kHz

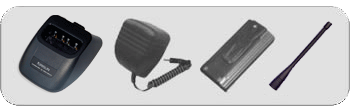

Standard Accessories


User's Manual download:
( NONE
Software download:
(NONE)
