KIRISUN PT2208/3208
Conventional FM Professional Transceiver

  • 16 CHANNELS
    16 stored channels available. 15 channels plus one scanning channel are selectable.

  • CTCSS / DCS
    Built-in CTCSS / DCS Encoder/Decoder for repeater selective calling.

  • TRANSMISSION PROHIBITED ON BUSY CHANNEL
    The function of prohibiting transmission on busy channel is present to avoid interfering ther ongoing communication.

  • AUTO POWER-SAVING
    Automatic power saving can be preset by PC programming software.

  • TOT(time-out-timer) CONTROL
    Time-out-timer function can stop the transmitting automatically by presetting a time limit to avoid any damage caused by long-time continuous transmission.

  • PC PROGRAMMABLE
    Frequency and other functions can be preset by PC programming software.

  • SET SQUELCH LEVEL THROUGH PROGRAMMING SOFTWARE
    Set squelch level through programming software ,so can avoid noise.

  • WIDE/NARROW CHANNEL SPACING SELECTABLE
    Two types of channel space available, 25KHz and 12.5KHz.

  • LOW BATTERY INDICATOR
    When the battery power appears low, the battery indicator will flash for alert.

  • SMA OUTLET FOR ANTENNA.

PT2208/3208 SPECIFICATION

  General

  General

PT2208

PT3208

  Frequency

(1) (136 ~ 150) MHz

(1) (400 ~ 420) MHz

(2) (146 ~174) MHz

(2) (450 ~ 470) MHz

  Channels

16(15+S)

  Channel space

25 kHz / 12.5 kHz

  Temperature range

-30 ℃ +60 ℃

  Antenna impedance

50 Ω

  Microphone impedance

2K Ω

  Frequency stability

± 2.5ppm

  Battery(Standard)

Model:KB-22A, Ni-MH DC 7.2V ± 20% 1100mAH
Battery life:8 hrs(5-5-90 duty)

  Case size(WXHXD)

55 mmX115 mmX32 mm

  Weight

130 g(Body)240 g(with battery and antenna)

  Receiver

  Sensitivity (12dB SINAD)

0.28 uV

  Operating band width

± 7KHz(W)/ ± 3.5KHz(N)

  Adjacent channel selectivity

More than 70dB(W), more than 60dB(N)

  Intermodulation reject ratio

More than 65dB

  Spurious response reject

More than 70dB

  AF output power

500mW (distortion less 5%)

  Transmitter

  RF power

5W(PT2208), 4W(PT3208)

  Modulation type

16K0F3E / 8K0F3E

  Spurious and harmonics

Less than -70 dB

  FM noise(300~3000Hz)

Less than -40 dB

  Audio distortion(300~3000Hz)

Less than 5%

  Maximum frequency deviation

± 5kHz

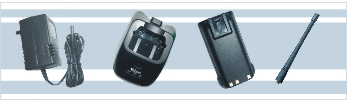

Standard Accessories
