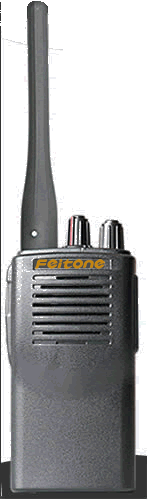

Feitone FTN-30
Conventional FM Professional Transceiver

  • Rock-solid

  • 点击见大图Light Weight: 225g

  • PC Programming
    With the optional programming cable, the parameters on radio could be configured by PC software.

  • Durable Die-Cast Chassis and Simple Operation

  • 16 Channels ( 15+Scan )
    15 communication channels and 1 scan channel provide flexible channel assignments among different user groups.

  • CTCSS/DCSSelectable
    To prevent unwanted conversations on the same frequency.
    CTCSS/DCS encoder and decoder can prevent interference on the same frequency from other communication groups.

  • Battery-saver
    When no signal or other operation is present, power save will automatically turn on.

  • Low Battery Alert (flashing red LED)
    When the battery power is low, the working status indicator flash red, reminding you to recharge or replace the battery.

  • Time- out Timer
    If the transmission time exceeds preset value, transmission will be stopped automatically. This feature is used to prevent one from using the same channel for too long and increase the efficiency of the channel.

  • Multi-mode Scan
    Scan channel is convenient for the team leader to monitor the on-site situations. The scanning mode and scanning priority is programmable.

  • Wire Clonable
    Radio-to -radio copy can be achieved via a simple interface cable without the use of a PC or special equipments.

FTN-30 SPECIFICATION

  General

  Frequency Range

FTN-30V.

FTN-30U

136-150MHZ

400-420MHZ

150-170MHZ

430-450MHZ

144-168MHZ

450-470MHZ

  Operating Temperature Range

-20—+60℃

  Antenna Impedance

50Ω

  Channel Capacity
16

  Battery Voltage

7.2V

  Dimensions

100×51×28 mm

  Weight

225g(with Ni-H battery & Antana)

  Transmitter Characteristics

  Frequency Stability

5ppm

  Output Power

2W

  TX Current

≤800mA

  Modulation Limiting

≤5kHz

  Modulation Sensitivity

12mV

  Audio Distortion

≤5%

  Adjacent Channel Power Ratio

≤-60dB

  Spurious & Harmonics

≤7.5μW

  Receiver Characteristics

  Reference Sensitivity

<0.25μV(12Db SINAD)

  Audio Output

>0.3W

  Audio Distortion

≤5%

  Blocking or desensitization

≥85dB

  Co-channel Rejection

≥-8dB

  Adjacent Channel Rejection

≥60dB

  RX Current

<200mA

  Spurious Response Rejection

≥60dB

Standard Accessories


User's Manual download:
( NONE )
Software download:
(NONE)
