Feitone

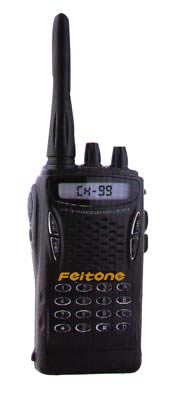

FTN-18
Conventional FM Professional Transceiver
FEATURES:
- LCD Display
- LCD and keypad back light
- Frequency direct entry by keypad
- 100 memory channels
- Automatic scan
- Automatic power save
- Keypad lock
|
FTN-18 SPECIFICATION
| General |
Model |
FTN-18V |
FTN-18U |
Frequency Range |
137-174MHz |
350-470MHz |
Communication range |
5-20Km(on broad area) |
Frequency Stability |
5ppm |
Operation Voltage |
6.0V |
Channel Number |
100 |
| Transmitter |
Power Output |
≤ 5W |
Audio Distortion |
≤ 5% |
Max.Freq.Deviation |
≤+- 5KHz |
Transmitting Current |
1.2A |
Spurious Radiation |
Better than 60dB |
Adjacent-channel Power |
Better than 60dB |
| Receiver |
Sensitivity |
Better than 0.20 μ V |
Squelch Sensitivity |
Better than 0.15 μ V |
Spurious Response Rejiection |
Better than 60dB |
Anti-interference of bad wave Better
than 60dB |
Better than 60dB |
Intermodulation Rejection |
Better than 60dB |
Standby Current |
40mA(It is about 15mA in state of power save) |
Standard Accessories
|
|
|
User's Manual download：
（
NONE ） |
 |
Software download：
（NONE) |
|
|
