Feitone

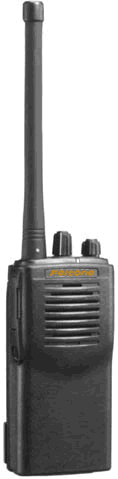

FTN-07
Conventional FM Professional Transceiver
"The Primary Communicator"
Rugged, fully featured, easy to handle, and reasonably priced:
The radio simply makes good business sense.
Designed to meet tough MIL-STD 810 C/D/E specifications, this handy radio is extremely reliable.
-
Sixteen RF Channels & QT/DQT Tone Keys
These compact and easy-to-use VHF/UHF portables are available with sixteen RF channels.
Each RF channel can be assigned a Quiet Talk (QT) and Digital Quiet Talk (DQT) tone key
to eliminate unwanted signals. This helps to minimize interference from other users as
audio will not be heard if your radio receives a signal with the incorrect tone key.
-
Rock-Solid Design
The radio is your guarantee of absolute performance in demanding situations as it fully complies with MIL-STD 810 C/D/E standards for resistance to shock, vibration, humidity, dust, and light rain. The aluminum die-cast chassis, sealed case design, and SMA antenna connector withstand rough handling to enable these exceptionally rugged radios to provide years of reliable service.
-
Wide/Narrow Channel Bandwidth
The radio can be programmed for wide or narrow bandwidth operation per radio to accommodate all present and future channel allocations.
-
Time-Out Timer
When the preset continuous transmit limit is reached, the time-out timer automatically switches the radio to receive operation. This limits the transmission talk time of each unit to help reduce channel congestion and conserve battery power.
-
Battery Saver
This feature automatically puts the radio in "sleep" mode to conserve power when it has been in standby mode (no transmit or receive) for more than the preset time limit.
-
Two Color LED
For added convenience, the two color LED indicator lights red for transmit and green for an active channel.
- Low-Battery Alert
The flashing red LED indicator warns you when the battery should be re-charged.
|
FTN-07 SPECIFICATION
| General |
| Frequency range |
FTN-07V |
FTN-07U |
Type 1: 150 ~ 174 MHz
Type 2: 136 ~ 150 MHz |
Type 1: 450 ~ 470 MHz
Type 2: 470 ~ 490 MHz
Type 3: 490 ~ 512 MHz
Type 4: 406 ~ 430 MHz
Type M4: 400 ~ 420 MHz |
| Number of Channels |
16 semi-duplex |
| Antenna Impadance |
50 OHm |
| Channel Spacing |
25 Khz (Wide) / 12.5 KHz (Narrow) |
| Operating Voltage |
7.5 VDc ?20% |
Battery Life
(5-5-90 Duty Cycle) |
With KNB-15A - more than 8 hours at 5W with battery saver Off |
| Operating Temperature Range |
-30℃ ~ +60℃ |
| Frequency Stability |
0.0005% (-30℃ ~ +60℃) |
| Dimensions (W x H x D) |
58 x 125.5 x 35 mm with KNB-15A battery |
| Weight (net) |
380 g with KNB-15A battery, antenna and belt hook,
170 g main body only |
| Receiver |
| Sensitivity |
EIA 12 dB SINAD: 0.25 μV (Wide)
0.28 μV (Narrow) |
| Selectivity |
70 dB (Wide)
60 dB (Narrow) |
| Intermodulation |
65 dB (Wide)
60 dB (Narrow) |
| Spurious & Image Rejection |
65 dB |
| Audio Output |
500 mW at less than 10% distortion |
| Channel Frequency Spread |
Type 1: 24 MHz
Type 2: 14 MHz |
| Transmitter |
| RF Power Output |
5 W |
| Modulation |
16K0F3E
11K0F3E |
| Spurious & Harmonics |
65 dB |
| FM Noise |
45 dB (Wide)
40 dB (Narrow) |
| Microphone Impedance |
- |
| Audio Distortion |
5% |
| Channel Frequency Spread |
Type 1: 24 MHz
Type 2: 14 MHz |
Standard Accessories
KNB-14
Standard Rechargeable
NiCd Battery
(7.2V 600 mAh) |
KSC-15
Regular Rate Single
Unit Desktop Charger
|
KMC-17
Heavy-duty Speaker
Microphone |
KRA-15
UHF Whip Antenna |
KNB-15
Extended-life Rechargeable
NiCd Battery
(7.2V 1100 mAh) |
KSC-16
Rapid Rate Single
Unit Desktop Charger
|
KMC-21
Compact Speaker
Microphone |
KRA-14
VHF Helical Antenna |
KBP-1
AA Alkaline Battery Pack
(holds 6 AA cells;
not included) |
KSC-21R
Conditioning Rapid Charger
(charges battery only)
|
KHS-1
Headset with VOX/PTT |
KBH-8
Spring-action Plastic
Belt Clip |
KWR-1
Water-resistant Bag |
|
|
|
|
|
|
