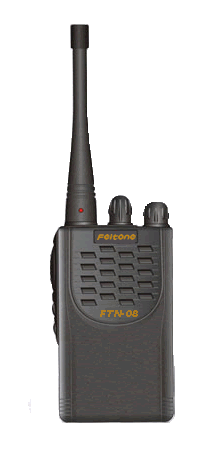

Feitone FTN-08
Conventional FM Professional Transceiver

  • 5W RF Power Output
  • Oral Channel Indication 点击见大图
  • Emergency Button
    The small and smart F8 offers emergency signaling, which can be configured to send a help signal to the group of people.
  • Durable Die-Cast Chassis and Simple Operation
  • 16 Channel Capacity
    The 16 channels allow users to organize their work teams into different talk groups, increasing the flexibility of the radios.
  • Built-in QT/DQT
    It enables users to only hear calls from their own group for clearer, improved audio output.
  • Meets MilSpec-MIL-STD-810C,D&E
    Programmable Channel Space(12.5/25Khz)
    Programmable Channel Spacing of 12.5 / 25Khz mode allows flexible and easy migration of channel spacing.
  • Battery-saver
    When no signal or other operation is present, power save will automatically turn on.
  • Low Battery Alert (flashing red LED)
    Red-color LED Battery Gauge indicates battery status with early warning on low battery strength.
  • Two-color LED
    Two color LED indicates transmit/receive status.
  • Busy channel lockout
    Busy channel lockout prohibits the interfering to current on-air transmission.
  • Time- out Timer
    If the transmission time exceeds preset value, transmission will be stopped automatically. This feature is used to prevent one from using the same channel for too long and increase the efficiency of the channel.
  • Monitor
    Press MONI button to monitor real-time transmissions on current channel.
  • Squelch level is programmable
  • PC Programming
    Computer edits radio parameters.
  • Wire Clonable :
    Radio-to -radio copy can be achieved via a simple interface cable without the use of a PC or special equipments.
  • The small and smart F8 offers emergency signaling, which can be configured to send a help signal to the group of people. The F8 is the two-way radio that can easily increase productivity by keeping users communicating. With the F8, communication couldn't be easier.

FTN-08 SPECIFICATION

  General

  Frequency Range

136-150MHz  150-170MHz
400-420MHz  450-470MHz

  Operating Temperature Range

-20—+60℃

  Antenna Impedance

50Ω

  Battery Voltage

7.2V

  Dimensions

99×54×31mm

  Weight

220g(with 1100mAh Lion battery)

  Transmitter Characteristics

  Frequency Stability

5ppm

  Output Power

4W(VHF 5W)

  TX Current

1.5A

  Modulation Limiting

≤5kHz

  Modulation Sensitivity

12mV

  Audio Distortion

≤5%

  FM noise

≤-40dB

  Adjacent Channel Power Ratio

≤-65dB

  Spurious & Harmonics

≤7.5μW

  Receiver Characteristics

  Reference Sensitivity

0.18μV

  Audio Output

0.5W

  Audio Distortion

≤5%

  Blocking or desensitization

≥85dB

  Co-channel Rejection

≥-8dB

  Adjacent Channel Rejection

≥60dB

  Intermodulation Rejection

≥55dB

  Spurious Response Rejection

≥60dB

Standard Accessories


User's Manual download:
( NONE )
Software download:
(NONE)
