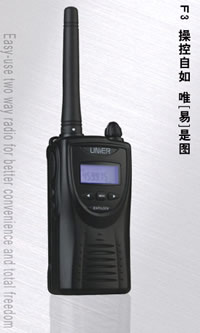

UNIER F3
Conventional FM Professional Transceiver
- The front panel programming feature
enables users to customize and program the radios within your palm.
The F3 allows easy handling which is ideal for tourist, hotels, retail and other service industries.
- Easy-to-use feature that boost productivity
32 Channels --The 32 channels allow users to organize their work teams into different talk groups, increasing the flexibility of the radios. The channel button is located in the front of the radio. Providing quick and easy access to the different talk groups.
User Programmable Features--Large front panel buttons facilitate easy programming of the several radio functions. Customize and reset your radio profiles while on the go without the need for the additional equipment.
- User-friendly Navigation --With four navigation buttons, user can simply scroll through the radio's menu. The four programmable buttons allow you to assign up to several commonly-used features. Providing even greater convenience at your fingertips.
- Blue and Large Display – Battery capacity and signal strength inductors enable you to determine the radio's operating performance at a glance. Text and number displays such as channel and frequency number. Providing critical information for your operation.
- 5W/ 2W RF Power Output Adjusted, Battery-save Feature --With 2 power level--low and high. The F3 allows flexible user control over the battery operation efficiency. Using Low when communicating in close promixity allows user to save battery use.
|
UNIER F3 SPECIFICATION
General |
Frequency Range |
136-150MHz 150-174MHz
400-420MHz 450-470MHz |
Channels |
32 |
Operating Temperature Range |
-20-- +60℃ |
Antenna Impedance |
50Ω |
Battery Voltage |
7.2V |
Dimensions |
116(L)×55(W)×37(H)mm |
Weight |
358g( with 1100mAH battery and antenna |
287g( with 1100mAH Lion battery and antenna ) |
Transmitter Characteristics |
Frequency Stability |
5ppm |
RF Output Power |
4W(VHF 5W) |
| TX Current |
1.5A |
Modulation Limiting |
≤5kHz |
Modulation Sensitivity |
12mV |
Audio Distortion |
≤5% |
FM noise |
≤-40dB |
Adjacent Channel Power Ratio |
≤-65dB |
Spurious & Harmonics |
≤7.5μW |
Receiver Characteristics |
Reference Sensitivity |
0.18μV |
Audio Output |
0.5W |
Audio Distortion |
≤5% |
Blocking or desensitization |
≥85dB |
Co-channel Rejection |
≥-8dB |
Adjacent Channel Rejection |
≥60dB |
Intermodulation Rejection |
≥55dB |
Spurious Response Rejection |
≥60dB |
Standard Accessories

|
|
|
