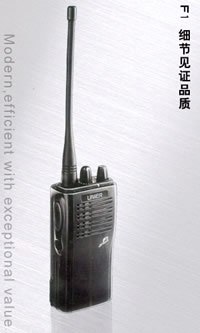

UNIER F1
Conventional FM Professional Transceiver
- 5W RF Power output

- 16 CHANNEL CAPACITY
The 16 channels allow users to organise their work teams into different talk groups, increasing the flexibility of the radios.
- Build-in CTCSS/DQT
It enables users to only hear calls from their own group for clearer, improved audio output.
- Programmable channel space(12.5/25Khz)
Programmable Channel Spacing of 12.5 / 25Khz mode allows flexible and easy migration of channel spacing.
- HIGH Battery Capacity
Long battery life allows users to enjoy more than 8 hours of talktime .
- Battery-saver
When no signal or other operation is present, power save will automatically turn on.
- Low battery alert (flashing red LED)Red-colour LED Battery Gauge indicates battery status with early warning on low battery strength.
- Time out timer
- Monitor
- Wire Clonable
Radio-to -radio copy can be achieved via a simple interface cable without the use of a PC or special equipments.
- PC Programming
Computer edits the procedure and adjustment.
- SMA outlet for antenna to give a better electric feature.
- Programmable Squelch level
- Busy channel lockout
- Durable and Simple Operation
- Meets MilSpec-MIL-STD-810C,D&E
- The UNIER F1 is compact, easy to use ,affordable yet effective professional radio. This reliable 16 channelUNIER F1 radio is the perfect solution for entry level professionals. UNIER F1 is ideal for manufacturing, hotels, retail and other service industries.
|
UNIER F1 SPECIFICATION
General |
Frequency Range |
136-150MHz 150-174MHz
400-420MHz 450-470MHz |
Channels |
32 |
Operating Temperature Range |
-20-- +60℃ |
Antenna Impedance |
50Ω |
Battery Voltage |
7.2V |
Dimensions |
116(L)×55(W)×37(H)mm |
Weight |
358g( with 1100mAH battery and antenna |
287g( with 1100mAH Lion battery and antenna ) |
Transmitter Characteristics |
Frequency Stability |
5ppm |
RF Output Power |
4W(VHF 5W) |
| TX Current |
1.5A |
Modulation Limiting |
≤5kHz |
Modulation Sensitivity |
12mV |
Audio Distortion |
≤5% |
FM noise |
≤-40dB |
Adjacent Channel Power Ratio |
≤-65dB |
Spurious & Harmonics |
≤7.5μW |
Receiver Characteristics |
Reference Sensitivity |
0.18μV |
Audio Output |
0.5W |
Audio Distortion |
≤5% |
Blocking or desensitization |
≥85dB |
Co-channel Rejection |
≥-8dB |
Adjacent Channel Rejection |
≥60dB |
Intermodulation Rejection |
≥55dB |
Spurious Response Rejection |
≥60dB |
Standard Accessories

|
|
|
