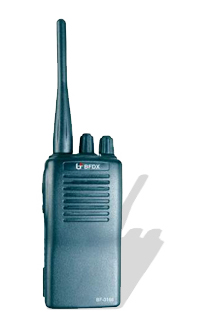

BFDX BF-3108
Conventional FM Professional TransceiverZOOM

FEATURES:

  • Professional wireless frequency modulated handset

  • High power rating, reach long distance communication

  • Easy to operate and using, mini design

  • Automatic power saving function to reach longer using time of the battery

  • Using computer coder to select the channel, so it is easy to operate

  • Having the CTCSS and DCS functions, prevent outside interfere signal

  • Under the mode of 15+s,scanning function

  • PC programming,you can update the parameter and the frequency channel data easier

BF-3108 SPECIFICATION
  Normal

  MODEL

UHF

  Frequency Range

400-470MHz

  Channel amount

16(15+s)

  Channel space

25khz(width) 12.5khz(narrow)

  Usable temperature range

-20 ℃- +60 ℃

  Power supply

7.5VDC( +- 20 ℃ )

  Volume

53(W)*108(H)*28(L)mm

  Weight

100g(main machine without battery and antenna)

  Transmitter

  Transmitting power

≤ 5W

  Frequency stability

+- 5ppm

  Modulated mode

16K ⊙ F3E(width) 8K50F3E(narrow)

  Spurious emissions

≤ -70dB

  FM noise

≤ -40dB

  FM distortion

≤ 5%

  Maximum frequency deviation

≤+- 5KHz(W)

≤+- 2.5KHz(N)

  Channel expand

20MHz

  Receiver

UHF

  Frequency stability

+- 5ppm

  Selectivity(12dB SINAD)

Better than 0.25 μ V(W)

Better than 0.28 μ V (N)

  Receiving FM bandwidth

≥+- 7KHz(W)

≥+- 3.5KHz(N)

  Adjacent channel selectivity

≥ 65dB

  Anti interfere of intermodulation

≥ 60dB

  Anti interfere of spurious wave

≥ 60dB

  Audio output power

500mW

  Channel expand

20MHz

Standard Accessories


User's Manual download:
( NONE )
Software download:
(NONE)
